Complete solution for efficiently 10TH Wood Pellet Production Line
Do you have abundant log resources (moisture content up to 50%), but are struggling to efficiently convert them into high-value wood pellets? Faced with the growing demand for biomass energy, a stable, efficient, and energy-saving large-scale production line is the key to your market opportunities. Our 10 tons/hour wood pellet production line designed specifically for processing high-moisture logs provides a complete turnkey project from logs to finished pellets to help you maximize the value of your resources!
Traditional equipment is prone to clogging, energy consumption soars, and production is unstable. What we can provide :

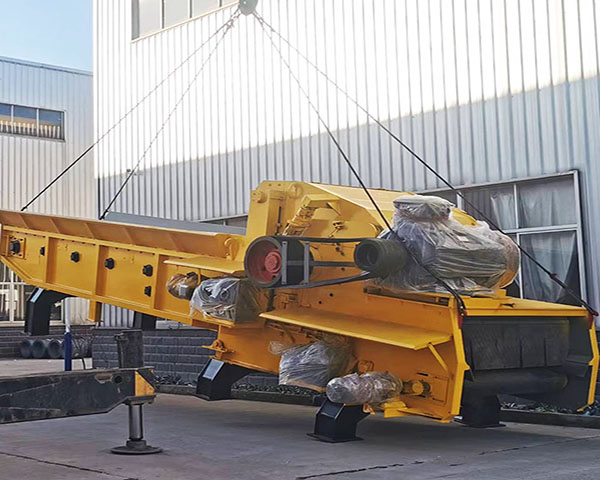

1:Heavy Duty stationary or walking Wood chipper
Task: Reduce the original logs (trunks, branches) to primary size.
Tool: Heavy-duty disc chipper or drum chipper. Equipped with high-strength alloy blades, it can easily cut large-diameter logs and produce uniform wood chips

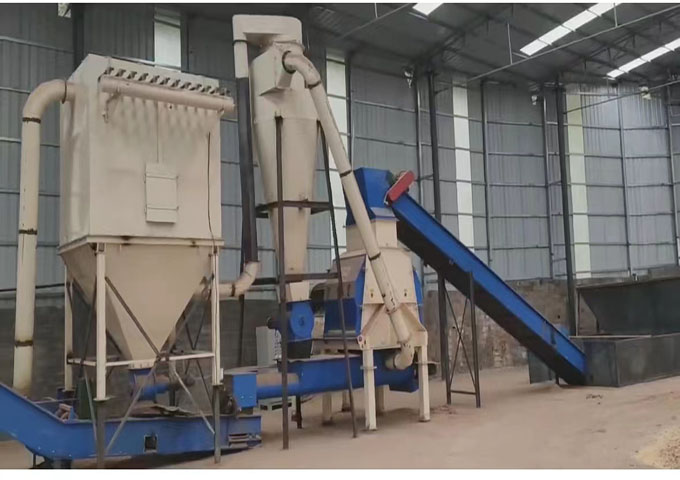

2. Fine grinding - standard particle size: Efficient hammer mill
Task: further grinding wood chips to wood sawdust required for pelletization (usually 3-5mm).
Tool: high-power, high-airflow hammer mill. Optimized design for high-humidity wood chips, anti-blocking rotor and strong air separation system ensure efficient grinding and smooth discharge to avoid material sticking.

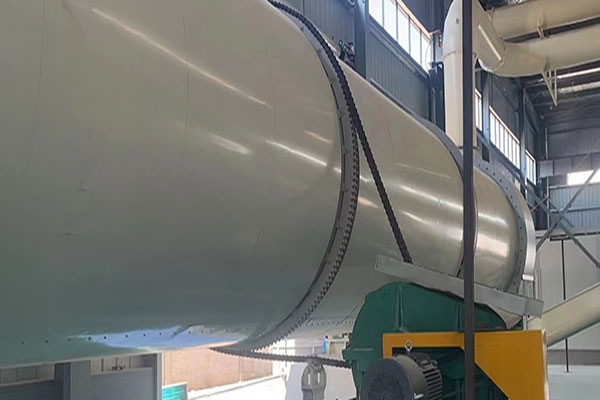

3. Efficient dehydration - Intelligent multi-layer/drum drying system
Mission: Core link! Quickly and evenly reduce the water content of 50% wood powder to the optimal moisture content for granulation (12-15%).
Advantages: Multi-layer dryer is designed for high-humidity materials, intelligent temperature control system (high-temperature rapid dehumidification at the inlet, low-temperature precise water control at the outlet), and waste heat recovery of hot air furnace exhaust.
Customer value: Significantly reduce energy consumption costs (30-40% energy saving compared to traditional drying), precise water control to ensure granulation quality and efficiency, and stable and reliable system.

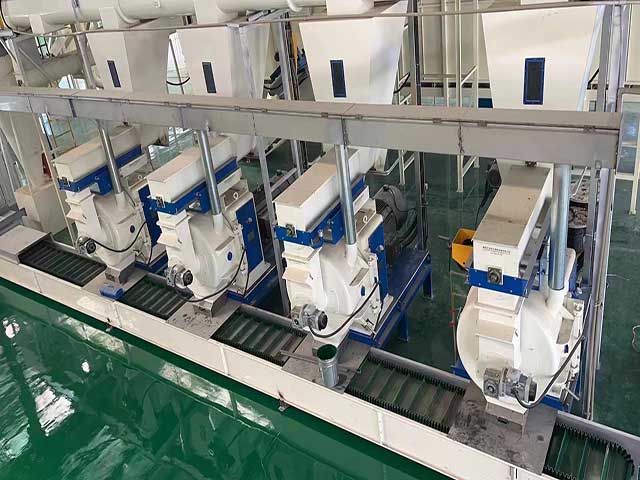

4. High pressure forming - Wood pellet machine ；
Task: squeeze dry wood powder through the ring die holes under high pressure and temperature to form dense, smooth cylindrical pellets.
Advantages: Main machine: High-power ring die pellet machine 860. Heavy-duty gearbox with three-year warranty, high-quality alloy steel ring die roller, designed for 10 tons/hour production capacity, stable operation, high pellet forming rate, good hardness and smooth surface.
No dust go into side of pelletizer chamber .
Time of change ring die and rollers only 2 hours .
Main shaft and gear will not break down for 3 years warranty .
Servo motor to save 7% electric power compared traditional type .
4. Cooler and moving floor .
Choosing our 10 tons/hour production line, you will get:
Strong power, conquer high humidity: The powerful crushing and efficient drying system optimized for 50% moisture logs breaks through the high moisture bottleneck.
Stable and efficient, continuous output: The core equipment (crusher, dryer, pellet machine) is scientifically selected and matched according to the 10 tons/hour production capacity to ensure stable production all year round.
Energy saving and consumption reduction, significant benefits: Drying waste heat recovery, high-efficiency fans, intelligent control and other designs significantly reduce the energy consumption cost per ton of pellets.
Excellent quality and strong competitiveness: The pellets produced have high density, good hardness and stable calorific value, which meet the international mainstream standards (such as ENplus) and win the favor of the market.
Turnkey service, worry-free and labor-saving: From planning and design, equipment supply, installation and commissioning to technical training and after-sales support, we provide a one-stop solution.
