1-20t/h Wood Pellet Press Machine Ring Die Type

Ring die wood pellet press is adopt America CPM Pellet Mill Technology .

Quick Advantage :

1. Gear driven.

2. Force feeder.

3. Safe protection mechanism for both workers and machines.

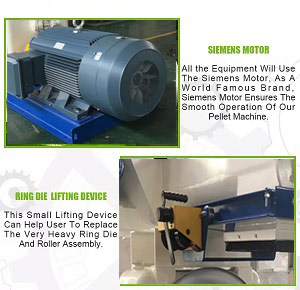

4. Siemens motor, imported bearings.

5. Alloy steel or all stainless steel ring die.

6. Auto cooling and oil adding lubrication system.

7. Controlled length of pellet.

8. Optional Conditioner.

9. Optional Intelligent automatic control system.

Working Principle :

The raw material comes into the pelletizing chamber , meanwhile the ring die is rotating and driving the rolller shell ,under the action of moving ,the raw material enters to the hole of ring die and pressed by roller shell into the pellet and then cutted by the scrap .

The main technical parameter :

Details Ring die data of each pellet press mill .

Generally details :

1. After sale service: 7X24 hours

2. Delivery time: 15 working days

3. Qty of Container: 3-5pcs 40 HQ

4. Port: Shanghai

5. Shipment time: 7-15days to Asia, 22-25days to EU and other countries.

6. Operator: 3-5workers if total line .

7. Certificate: CE,ISO

8. Size of workshop: the hength is 6-8M, the length and width depend on the capacity and flow diagram.

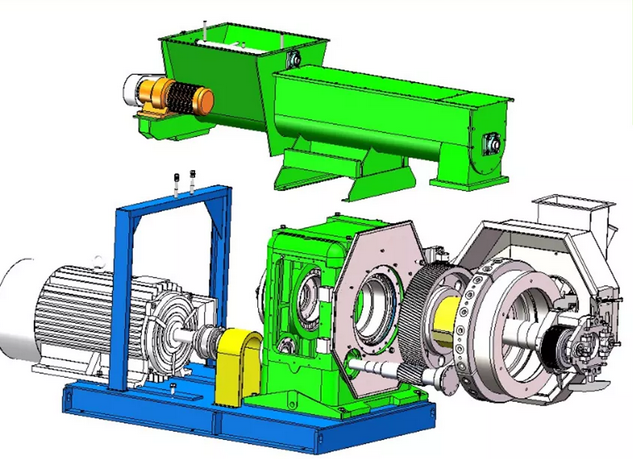

The structure of  Pellet press Mill :

1. Frequncy control feeder screw  with anti-caking device .

2. Imported gear box ,high processing accuracy .

3. Imported gear processing equipment to ensure long time use .

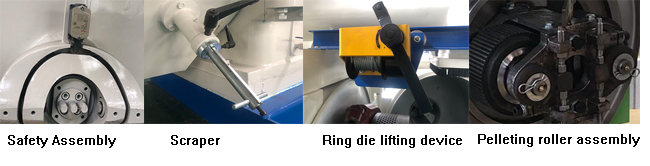

4. Safety Assembly- protecting the main shaft ,motor and ring die .

5. Modulating alloy steel of main shaft with good bending resistance and torsional performance .

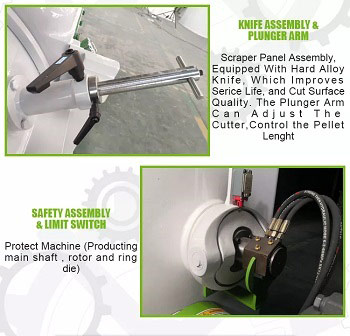

6. Scraper panel assembly, with hard alloy knife to ensure the pellet surface quality .

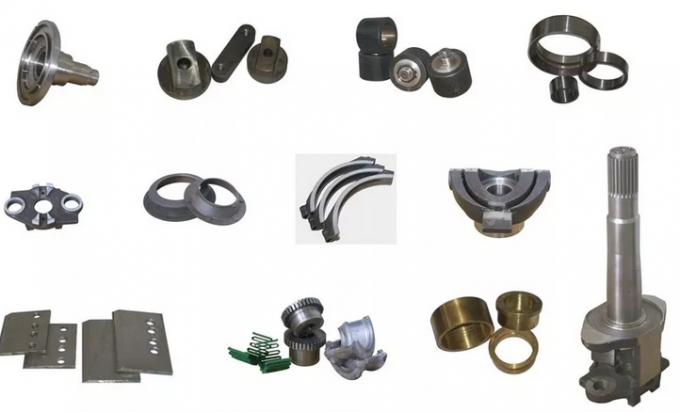

The spare parts :

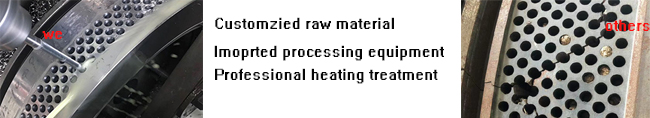

1. Ring die : Replaced when be abrasion.A good ring die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop). We ring die :Customized stainless steel and alloy steel, carburized surface ,imported processing equipment .

2. Roller shell :Customized alloy steel matched our ring die ,higher capacity .

3. Five piece cover ,o ring ,oil seal etc .
