Wood chipper

Paper Mill Used Wood Chipper Machine BX Model 20t/h

Working principle :

The wood is fed from the feeding port. When the wood comes into contact with the cutting blade, it will be cut with the high-speed rotation of the cutting blade. The cutting mechanism is a rotating drum on which a number of flying knives are installed, and the flying knives rotate. The wood is processed into wood chips. There are a plurality of square through holes on the outer edge of the drum wheel, and the cut qualified pieces fall through the mesh screen holes and are discharged at the bottom, and the large pieces will be cut again in the machine.

The drum chipper is a special equipment for preparing high-quality wood chips. It is suitable for various paper mills, particleboard factories, fiberboard factories, wood chip production bases, and wood chip export bases. It can cut logs and small-diameter wood into high-quality industrial wood chips with uniform length, flat incision and uniform thickness, and can also cut branches and boards.

Introduction

1. It is the professional equipment for wood chips production process and used extensively in pulp and paper mills, which can be used as part of the wood handling process .

2. Material handled by this series of Disc Chipper includes raw wood logs, small diameter wood, residual material from wood harvesting( branches, twig), left over from timber processing( lath, slab, core, wood waste, etc.,)

3. It is simple to operate, high throughput, wide adaptability of raw materials, produces high chips quality, reliable and safe, easy to maintain, and are the most advanced chippers currently available in China.

Our high quality equipments are complemented by high quality mechanical and electrical components: SKF bearings, SEW gear reducers, Siemens Control, HMI interface, FESTO hydraulic parts.

Quick Advantage :

(1) We use Siemens motor, stable and durable.

(2) Guomao reducer,the leader brand in China,very good quality!

(3 )Q235 Carbon steel,4*4cm, 3-10cm all is ok.

(4) The feeding roller is large in diameter, heavy in weight and has coarse teeth on the surface.

(5) The blade is made of manganese steel,Wear-resistant.

(6) Full solid knife roller, durable and strong.

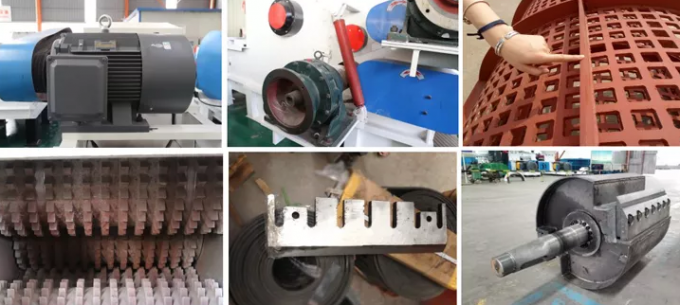

The spare parts of wood Pallet Shredder Machine

Spare Parts---Rotary Knife

65# manganese steel, anti-wearing, prolonging service life, which can cut hard wood.

Blade thickness 20mm, thin 1mm per grinding. Lifetime:4-6 months

Spare Parts---Fixed Knife

Material: 45# manganese steel Lifetime: around 400-600h
