Biomass Pellet machine

CPM Type Biomass Pelleting Press Manufacture 2t/h

Main technical parameters :

Quick advantage :

- The machine is equipped with ring die of 5-9 die hole, can choose according to the needs of different users, and ring die can be customized.

- The machine adopts frequency conversion motor feeder, overload protection device and the oil pump lubrication system.

- Apply to small and medium-size biomass pellet enterprise, easy to operate, less feeding and quick effect.

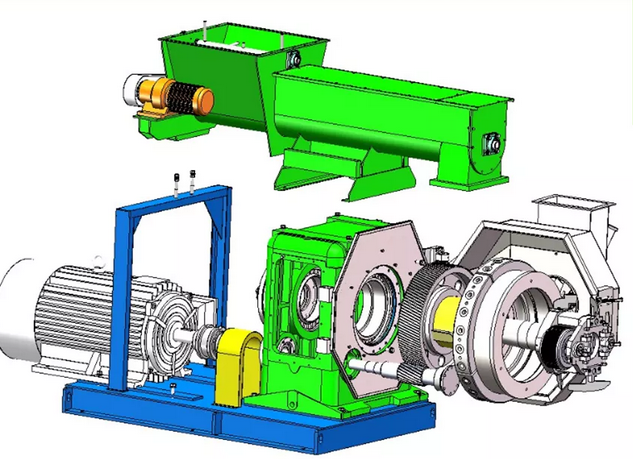

The structure of CPM Type Biomass Pelleting Press:


1. Feeder&Observation Hole:
Variable Frequency speed control, observation window to inspect the pelletizing at any time .

2. Forced feeder:
The average quantity is fed to the main engine at a constant speed.

3.Pelleting Chamber:
Insist of two rollers, ring die, and  fixing parts.

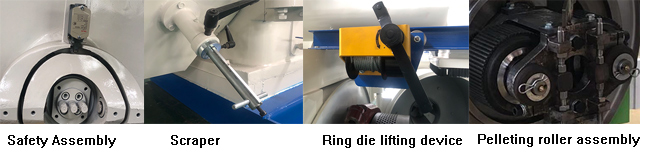

4. Safety device :

the safety pin and switch is equipped to protect main shaft and stop the electric when iron go into the chamber .

5. Ring die lifting device :

Roller shell and Ring die replaced easliy with lifting device

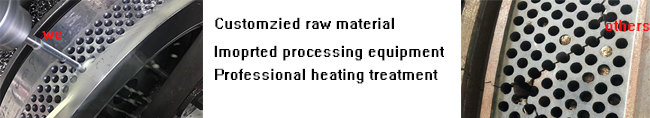

Ring die :

Customized raw material and imported processing equipment and profession heating treatment compared to others .

The compression ration of CPM Type Biomass Pelleting Press:

(Compression Ratio= L/D L: Effective Die Hole Pelleting Length; D: Effective Die Hole Dia)
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality. Compression ratio should be calculated based on your raw material for making pellets. Commonly compression ratio is inversely proportion to the hardness of raw material, the harder the raw material, the smaller the compression ratio.


Why us :

A.Good reputation

Because of the good quality and credit,our company are with good reputation both at home and abroad.

B. Factory direct supply

This ensure the competitive price available and brand care.

C. Advanced technology adopted

American CPM advanced technology with rich experience on site for installation and debugging,which has the good ability to provide with aftersale service.

D. Best and reasonable structure design of the pellet mill

This make sure the durability of the machinery running.

Gear drive of the bioass pellet mill which make the pellet machine stronger for making the wood pellets.Compared with belt drive,with lower consumption for the same capacity.
